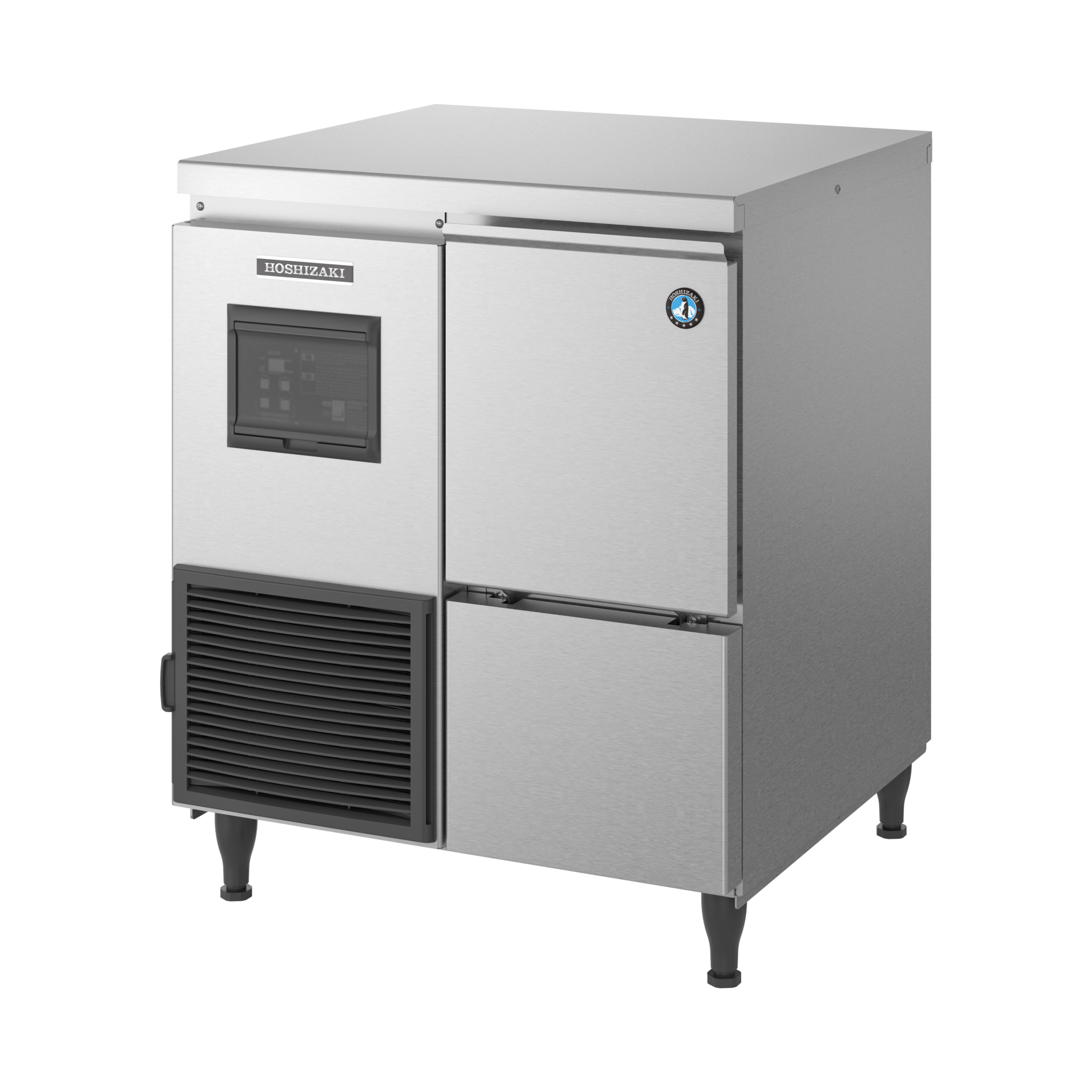

FM-80KE-HCN Nugget Ice Maker – Self-Contained Commercial Ice Machine

Spec Sheet

The Hoshizaki FM-80KE-HCN Nugget Ice Maker is a compact, self-contained commercial ice machine designed to produce up to 75 kg of nugget ice per 24 hours under standard conditions (air temperature 10°C, water temperature 10°C). Nugget ice is soft, chewable, and slow-melting, making it ideal for beverage service, healthcare facilities, cafés, restaurants, hotels, and self-service drink stations.

This model features Hoshizaki’s CleanCycle6 system, which automatically rinses built-up mineral impurities every 6 hours, ensuring consistent ice quality and reducing maintenance downtime. Water consumption is equal to ice production, providing efficient and predictable water usage.

The FM-80KE-HCN includes an automatic rinse cycle and a closed water circuit, protecting the ice-making process from contamination. An electronic controller ensures reliable operation, while the operation time-based parts replacement system supports preventive maintenance planning.

Built for durability, the auger is made from double-hardened stainless steel, and carbon graphite bushings enable grease-free operation, minimizing wear and maintenance costs. User-friendly features such as a cleanable air filter and a removable door gasket simplify routine cleaning and servicing.

FM-series machines can be converted to produce flake or nugget ice by a qualified engineer, offering flexibility for evolving operational requirements.

Technical Specifications

• Model: FM-80KE-HCN

• Ice type: Nugget ice (convertible to flake ice by qualified engineer)

• Cooling system: Air cooled

• Ice production capacity:

  • 75 kg / 24h at AT 10°C, WT 10°C

  • 65 kg / 24h at AT 21°C, WT 15°C

  • 50 kg / 24h at AT 32°C, WT 21°C

• Power supply: 1 / 220–240V / 50Hz

• Energy consumption: 0.27 kWh

• Electrical circuit breaker protection: 6 A

• Heat rejection: 0.45 kW (AT 32°C, WT 21°C)

• Water consumption: 0.075 m³ / 24h (AT 10°C, WT 10°C)

Key Features

• Self-contained nugget ice maker

• CleanCycle6 automatic mineral rinse every 6 hours

• Water consumption equal to ice production

• Automatic rinse cycle

• Closed water circuit for contamination protection

• Electronic controller

• Time-based parts replacement system for preventive maintenance

• Double-hardened stainless steel auger

• Carbon graphite bushings for grease-free operation

• Cleanable air filter

• Removable door gasket

• Convertible to flake or nugget ice by qualified engineer

Dimensions & Shipping Specifications

• Net dimensions (W × D × H, legs excluded): 640 × 600 × 711 mm

• Legs height: additional 87–122 mm

• Net weight: 65 kg

• Packed dimensions (W × D × H): 746 × 706 × 887 mm

• Gross packed weight: 75 kg

• Packed volume: 0.467 m³
