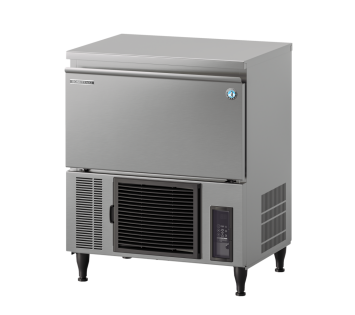

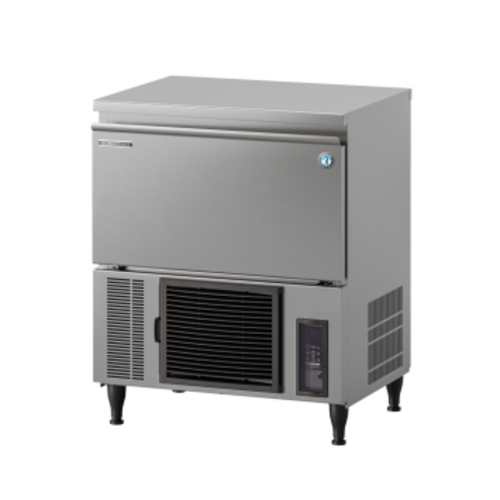

IM-45 CPE Cube Ice Maker

The Hoshizaki IM-45CPE Cube Ice Maker is a compact, self-contained commercial ice machine designed to deliver consistent and hygienic cube ice production for cafés, restaurants, bars, hotels, and professional foodservice environments. Capable of producing up to 47 kg of high-quality cube ice per 24 hours, this model is ideal for locations where space efficiency and reliable performance are essential.

The ice making system includes an automatic rinse cycle, and each ice cycle is produced using fresh water to ensure excellent hygiene and consistent ice quality. Hoshizaki’s Closed Cell System produces compact, hard, and geometrically perfect ice cubes that melt slowly, making them ideal for beverage service. A closed water circuit provides maximum protection against contamination throughout the ice production process.

For ease of operation and maintenance, the IM-45CPE features easy external access to the control panel, a cleanable air filter, a removable door gasket, and an easily removable water pan assembly. The system is equipped with a magnetic DC water pump with variable speed and no direct coupling, which prevents leakage and enhances long-term reliability.

To suit a wide range of installation requirements, UV-C sanitization and an internal drain pump can be retrofitted, providing additional hygiene and installation flexibility.

Technical Specifications

• Model: IM-45CPE

• Ice type: Cube ice

• Ice production capacity: Up to 47 kg / 24h

• Cooling system: Air cooled

• Ice making system: Closed Cell System with automatic rinse cycle

• Water circuit: Closed system for contamination protection

Accessories Included

• Ice scoop

• Installation kit

• Legs

Optional Accessories

• 4HC-H water filtration system

• Scoop holder kit

• UV-C sanitization kit

• Internal drain pump (pump motor kit and bracket)

Compatible Water Filters

• 4HC-H Single Water Filter

• 4HC Replacement Cartridge

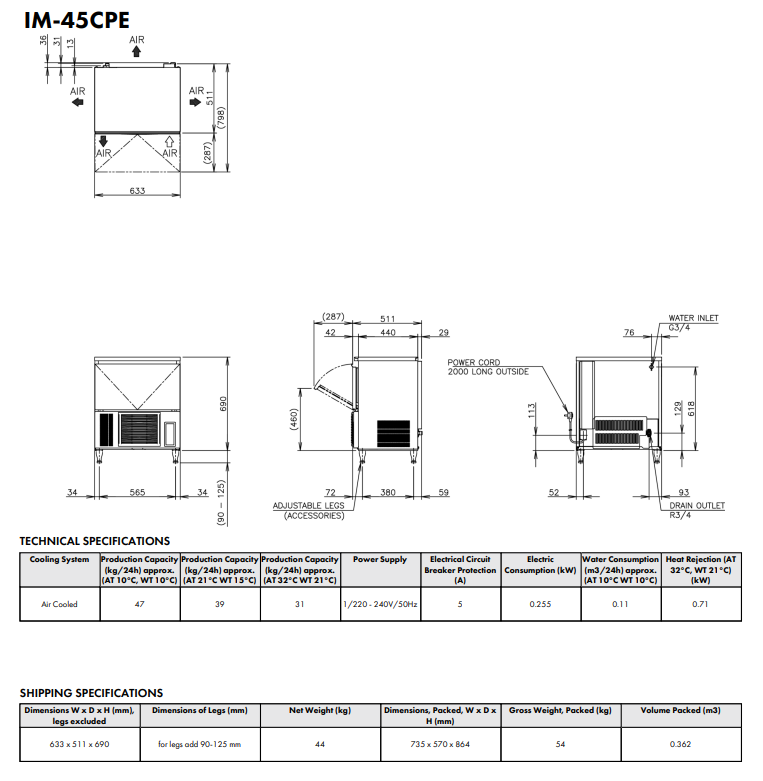

Dimensions & Shipping Specifications

• Net dimensions (W × D × H, legs excluded): 633 × 511 × 690 mm

• Legs height: additional 90–125 mm

• Net weight: 44 kg

• Packed dimensions (W × D × H): 735 × 570 × 864 mm

• Gross packed weight: 54 kg

• Packed volume: 0.362 m³
