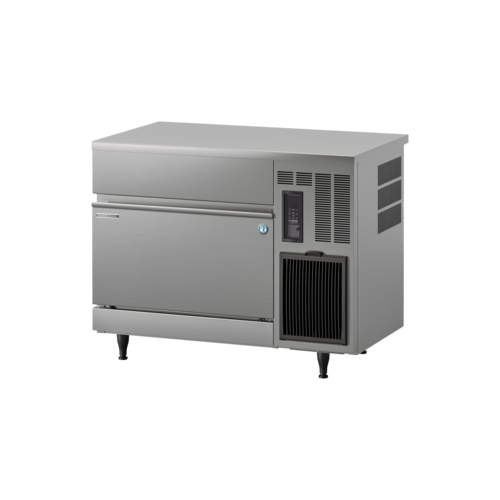

IM-130CPE Cube Ice Maker – Self-Contained | Commercial Ice Machine

Spec Sheet

The Hoshizaki IM-130CPE Cube Ice Maker is a high-capacity, self-contained commercial ice machine engineered for restaurants, bars, hotels, cafés, and professional foodservice environments with demanding daily ice requirements. Producing up to 108 kg of premium-quality cube ice per 24 hours at standard conditions (air temperature 10°C, water temperature 10°C), this model delivers reliable performance with excellent hygiene and energy efficiency.

The ice-making system features an automatic rinse cycle, and every ice cycle is produced using fresh water to ensure consistent ice quality and sanitation. Hoshizaki’s Closed Cell Ice System forms compact, hard, and geometrically perfect cubes with slow melting characteristics, ideal for beverage service. A closed water circuit provides additional protection against contamination throughout the ice production process.

Designed for ease of use and maintenance, the IM-130CPE offers easy external access to the control panel, a cleanable air filter, a removable door gasket, and an easily removable water pan assembly. The unit uses a magnetic DC water pump with variable speed and no direct coupling, preventing leakage and enhancing long-term reliability. UV-C sanitization can be retrofitted for enhanced hygiene control.

Technical Specifications

• Model: IM-130CPE

• Ice type: Cube ice

• Cooling system: Air cooled

• Ice production capacity:

  • 108 kg / 24h at AT 10°C, WT 10°C

  • 99 kg / 24h at AT 21°C, WT 15°C

  • 89 kg / 24h at AT 32°C, WT 21°C

• Power supply: 1 / 220–240V / 50Hz

• Electrical circuit breaker protection: 5 A

• Heat rejection: 1.45 kW (AT 32°C, WT 21°C)

• Water consumption: 0.43 m³ / 24h (AT 10°C, WT 10°C)

Key Features

• Automatic rinse cycle

• Fresh water used in every ice cycle

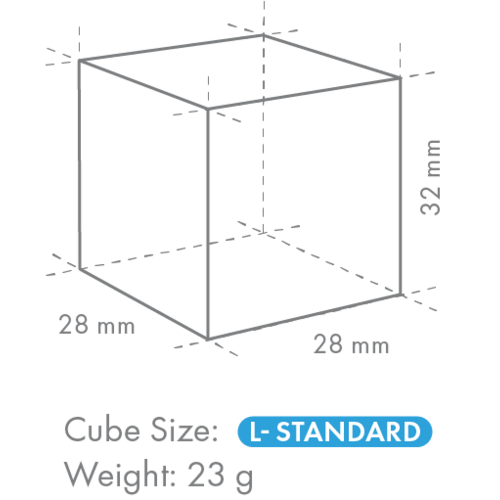

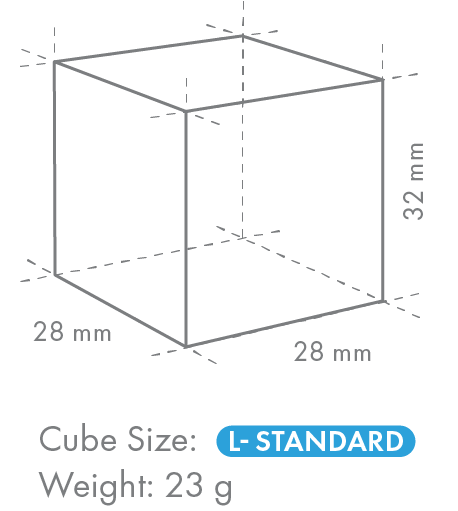

• Closed Cell Ice System for solid, slow-melting cubes

• Closed water circuit for contamination protection

• Magnetic DC water pump with variable speed

• Easy-access control panel

• Cleanable air filter

• Removable door gasket

• Easily removable water pan assembly

• UV-C sanitization retrofittable

Dimensions & Shipping Specifications

• Net dimensions (W × D × H, legs excluded): 1004 × 600 × 700 mm

• Legs height: additional 100 mm

• Net weight: 80 kg

• Packed dimensions (W × D × H): 1110 × 700 × 875 mm

• Gross packed weight: 91 kg

• Packed volume: 0.68 m³
