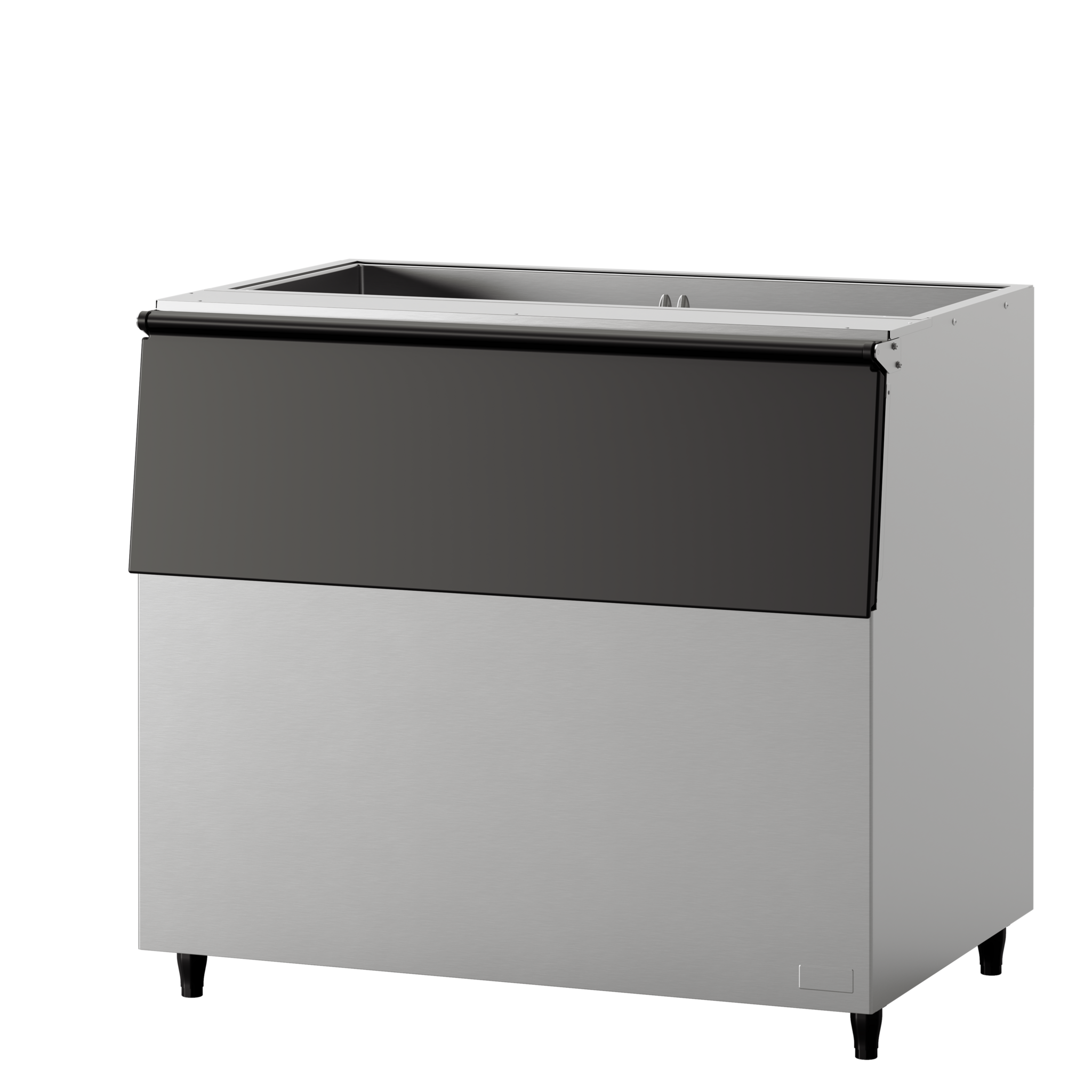

B-340SB Ice Storage Bin – 340 KG Capacity

Spec Sheet

The Hoshizaki B-340SB Ice Storage Bin is a high-capacity, heavy-duty ice storage solution designed to store up to 340 kg of ice. Built for high-volume commercial environments, it is ideal for hotels, large restaurants, catering operations, bars, nightclubs, supermarkets, and industrial foodservice applications requiring reliable and hygienic ice storage.

This storage bin is engineered to configure with a wide range of Hoshizaki modular cube and flake ice makers, including single, dual, and large-format units. The bin features stainless steel front and sides, ensuring durability, corrosion resistance, and long service life in demanding environments.

The upward-opening door is fitted with an insulating gasket for high thermal efficiency, reducing ice melt and maintaining consistent storage conditions. The gasket is easily removable, allowing quick cleaning or replacement. An ABS plastic insulated door keeps the unit lightweight while delivering excellent insulation. The door opening angle allows the door to remain in a stable rest position during ice scooping, improving safety and ease of use during busy service periods.

Internally, the bin is lined with non-corrosive polyethylene, featuring rounded corners and smooth surfaces for faster ice collection and simplified cleaning. Adjustable legs provide installation flexibility, while the rear drain connection ensures efficient meltwater discharge. The B-340SB is FCM compliant (Food Contact Material), making it suitable for professional foodservice use.

Compatible Ice Makers

IM-130A, IM-240A, FM-150, FM-300, FM-480, FM-600, KMD-210, KMD-270, KMD-210 (2 units), KMD-270 (2 units), FM-750, FM-1000, FM-1200, KM-470AJE, KM-590DJE, FM-1800, IM-240D

Required Top Kits

• Ice makers width 56 cm: TK 8D + TK 18D

• Ice makers 2 × width 56 cm: TK 4DM + TK 4DR

• Ice makers 2 × width 56 cm (others): TK 4DM

• Ice makers width 76 cm: TK-18D

• Ice makers width 122 cm: Not required

• Ice maker FM-1800: TK-FM 1800

• Ice maker IM-240D: TK-IMD2

Key Features

• Maximum ice storage capacity: 340 kg

• Compatible with modular cube and flake ice makers

• Supports single, dual, and large-format ice makers

• Stainless steel front and sides

• ABS plastic insulated, lightweight door

• Upward-opening door with insulating gasket

• Easy removable gasket for cleaning or replacement

• Door opening angle allows stable rest position during ice scooping

• Non-corrosive polyethylene inner lining

• Rounded inner corners for fast ice collection

• Smooth internal surfaces for easy cleaning

• Adjustable legs 90–135 mm

• Back-panel drain connection

• FCM compliant (Food Contact Material)

Technical Specifications

• Model: B-340SB

• Storage bin capacity: 340 kg

• Net dimensions (W × D × H): 1,219 × 820 × 1,016 mm

• Legs height adjustment: +90–135 mm

• Net weight: 64 kg
