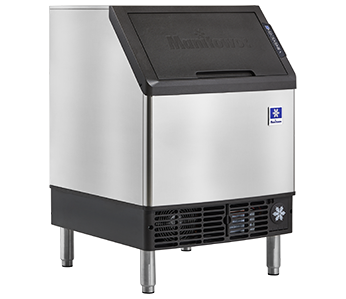

NEO Undercounter Diced Ice Machine UDP0240A

The Manitowoc NEO 240 is an undercounter ice machine producing up to 87 kg of ice per 24 hours, with a 36 kg storage bin. Available in dice or half-dice ice shapes, it measures 66 x 72.4 x 97.8 cm and is built for compact installation beneath counters, with air-cooled operation and R290 refrigerant.

Configuration and Performance by Ice Shape

• UDP0240A (dice) — 85 kg/24h at 21°C air/10°C water, dropping to 67 kg/24h at 32°C air/21°C water
• Forward-sliding storage bin — provides access to refrigeration components without moving the entire machine
• Full bin and service indicators with delay function — signals servicing needs and allows the machine to be paused during closed periods or slow trading
• Tool-free air filter removal — supports quick access for routine cleaning and maintenance
• Sealed food-zone with removable water trough, distribution tube, and damper door — designed for faster cleaning
