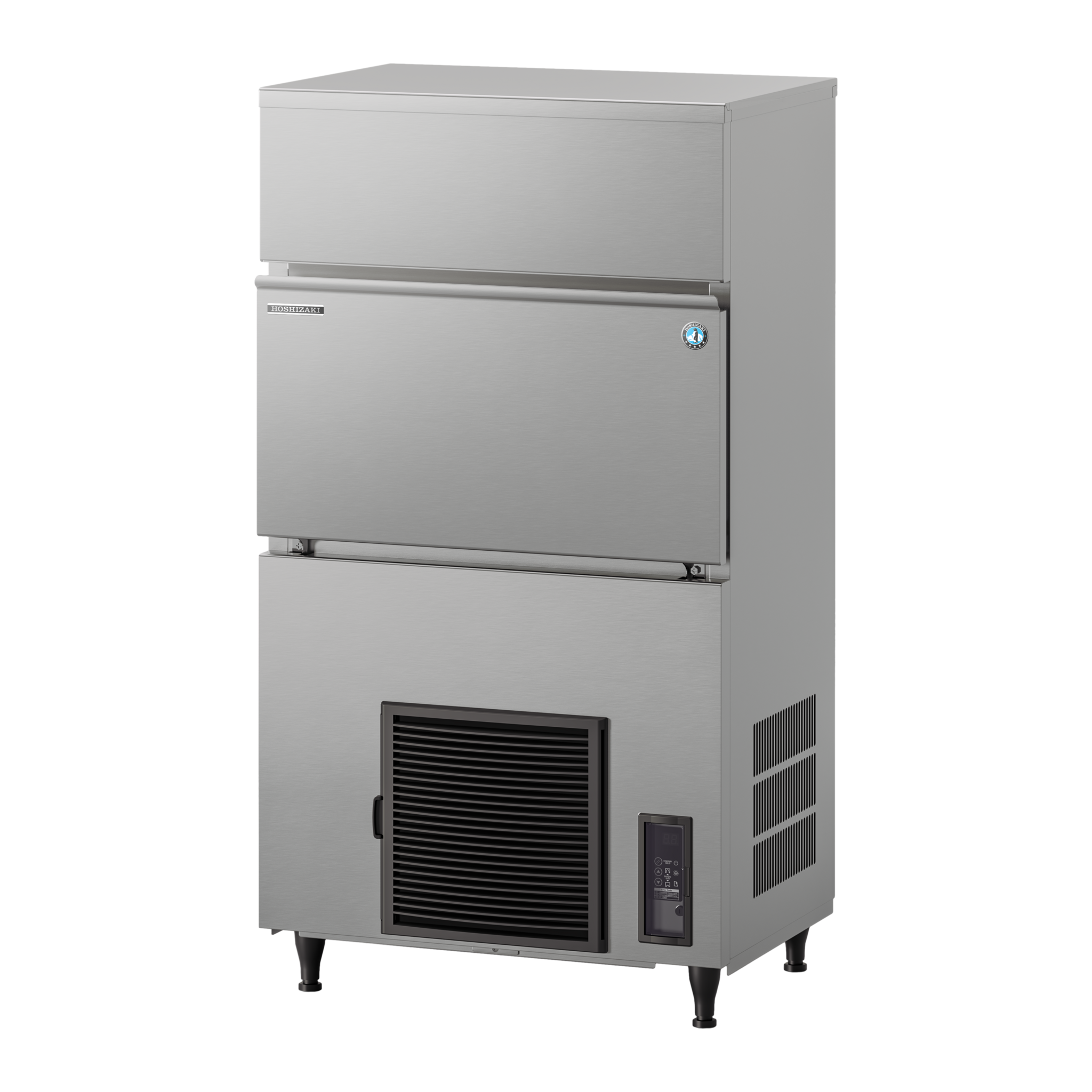

IM-130PE Cube Ice Maker – Self-Contained |Commercial Ice Machine

Spec Sheet

The Hoshizaki IM-130PE Cube Ice Maker is a high-capacity, self-contained commercial ice machine designed for restaurants, bars, hotels, cafés, and professional foodservice environments with heavy daily ice demand. Producing up to 116 kg of premium-quality cube ice per 24 hours at standard conditions (air temperature 10°C, water temperature 10°C), this model delivers consistent performance, excellent hygiene, and reliable efficiency.

The ice-making system features an automatic rinse cycle, and each production cycle uses fresh water to ensure optimal sanitation and consistent ice quality. Hoshizaki’s Closed Cell Ice System produces compact, hard, and geometrically perfect cubes with slow melting properties, making them ideal for beverage service. A closed water circuit further protects against contamination throughout the ice production process.

Designed for ease of use and maintenance, the IM-130PE offers easy external access to the control panel, a cleanable air filter, a removable door gasket, and an easily removable water pan assembly. The machine is equipped with a magnetic DC water pump with variable speed and no direct coupling, preventing leakage and improving long-term reliability. UV-C sanitization and an internal drain pump can be retrofitted to suit specific hygiene and installation requirements.

This air-cooled unit is supplied as a self-contained machine and is suitable for continuous operation in demanding commercial environments.

Technical Specifications

• Model: IM-130PE

• Ice type: Cube ice

• Cooling system: Air cooled

• Ice production capacity:

  • 116 kg / 24h at AT 10°C, WT 10°C

  • 107 kg / 24h at AT 21°C, WT 15°C

  • 96 kg / 24h at AT 32°C, WT 21°C

• Power supply: 1 / 220–240V / 50Hz

• Electrical circuit breaker protection: 5 A

• Heat rejection: 1.45 kW (AT 32°C, WT 21°C)

• Water consumption: 0.47 m³ / 24h (AT 10°C, WT 10°C)

Key Features

• Automatic rinse cycle

• Fresh water used in every ice cycle

• Closed Cell Ice System for solid, slow-melting cubes

• Closed water circuit for contamination protection

• Magnetic DC water pump with variable speed

• Easy-access control panel

• Cleanable air filter

• Removable door gasket

• Easily removable water pan assembly

• UV-C sanitization retrofittable

• Internal drain pump retrofittable

Dimensions & Shipping Specifications

• Net dimensions (W × D × H, legs excluded): 704 × 506 × 1210 mm

• Legs height: additional 70–110 mm

• Net weight: 71 kg

• Packed dimensions (W × D × H): 805 × 580 × 1375 mm

• Gross packed weight: 81 kg

• Packed volume: 0.642 m³
