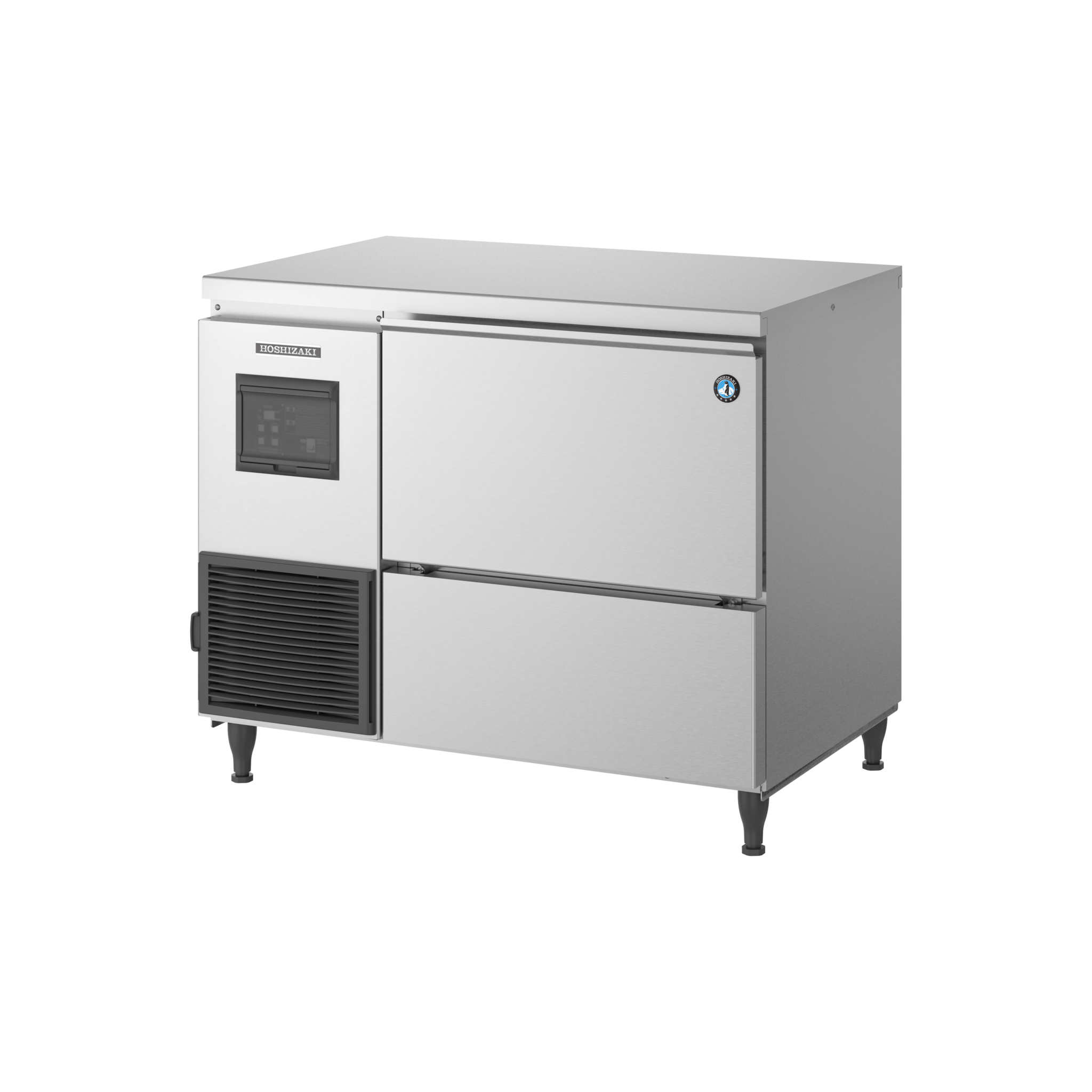

Hoshizaki FM-120KE-50-HCN Nugget Ice Maker

Spec Sheet

The Hoshizaki FM-120KE-50-HCN Nugget Ice Maker is a high-performance, self-contained commercial ice machine designed to produce up to 110 kg of soft, chewable nugget ice per 24 hours under standard conditions (air temperature 10°C, water temperature 10°C). Nugget ice is ideal for beverage service, healthcare facilities, cafés, restaurants, hotels, and self-service drink stations due to its slow-melting and easy-to-chew characteristics.

This model incorporates Hoshizaki’s proven CleanCycle6 system, which automatically rinses mineral impurities every 6 hours, ensuring consistent ice quality and reduced maintenance. Water consumption is equal to ice production, providing efficient and predictable water usage.

Hygienic operation is ensured through an automatic rinse cycle and a closed water circuit, protecting the ice-making process from contamination. The unit features a reliable electronic controller and an operation time-based parts replacement system, supporting preventive maintenance and long-term reliability.

Built for durability, the auger is manufactured from double-hardened stainless steel, while carbon graphite bushings allow grease-free operation, minimizing wear and lowering service costs. Additional user-friendly features include a cleanable air filter and a removable door gasket for easy routine cleaning and servicing.

FM-series machines can be converted to produce flake or nugget ice by a qualified engineer, offering flexibility to adapt to changing operational requirements.

Technical Specifications

• Model: FM-120KE-50-HCN

• Ice type: Nugget ice (convertible to flake ice by qualified engineer)

• Cooling system: Air cooled

• Ice production capacity:

  • 110 kg / 24h at AT 10°C, WT 10°C

  • 96 kg / 24h at AT 21°C, WT 15°C

  • 75 kg / 24h at AT 32°C, WT 21°C

• Power supply: 1 / 220–240V / 50Hz

• Energy consumption: 0.355 kWh

• Electrical circuit breaker protection: 6 A

• Heat rejection: 0.655 kW (AT 32°C, WT 21°C)

• Water consumption: 0.11 m³ / 24h (AT 10°C, WT 10°C)

Key Features

• Self-contained nugget ice maker

• CleanCycle6 automatic mineral rinse every 6 hours

• Water consumption equal to ice production

• Automatic rinse cycle

• Closed water circuit for contamination protection

• Electronic controller

• Time-based parts replacement system for preventive maintenance

• Double-hardened stainless steel auger

• Carbon graphite bushings for grease-free operation

• Cleanable air filter

• Removable door gasket

• Convertible to flake or nugget ice by qualified engineer

Dimensions & Shipping Specifications

• Net dimensions (W × D × H): 940 × 600 × 800 mm

• Net weight: 76 kg

• Legs: included, height 89 mm

• Packed dimensions (W × D × H): 1,046 × 706 × 887 mm

• Gross packed weight: 88 kg

• Packed volume: 0.655 m³
