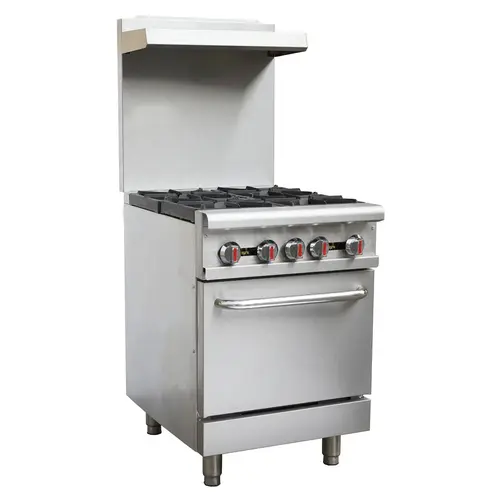

HDSGR‐24 Commercial Gas Heavy Duty Range with Oven

This commercial gas heavy-duty range is designed to deliver powerful performance and versatility in compact kitchen spaces. Featuring four high-output top burners, each rated at 30,000 BTU, the unit provides efficient and consistent heat for a wide range of cooking applications.

The 12" x 12" removable cast iron top grates ensure durability and stability for various cookware while allowing easy cleaning. Each burner is equipped with individual pilot lights and controls, giving precise heat management for better cooking results.

The integrated standard oven base delivers 31,000 BTU and operates within a temperature range of 212°F to 608°F, making it suitable for baking, roasting, and warming. The oven includes two adjustable racks, offering flexibility for different cooking needs.

Constructed with stainless steel front, sides, backriser, and shelf, along with stainless steel burner and grate supports, this unit ensures long-lasting durability, corrosion resistance, and a professional finish. A removable crumb tray helps maintain cleanliness and simplifies maintenance.

Supported by 6" adjustable legs, the range provides stability on uneven surfaces. Designed for LP gas operation, it features a 3/4" NPT gas connection for easy installation.

With its combination of cooktop power and oven functionality, this 24" heavy-duty range is ideal for restaurants, cafés, and commercial kitchens requiring performance and space efficiency.

Technical Specifications

• Dimensions: 24" W
• Top Burners: 4 burners (30,000 BTU each)
• Total Output: 151,000 BTU
• Grates: 12" x 12" removable cast iron top grates
• Controls: Individual pilot lights & controls
• Oven Output: 31,000 BTU
• Oven Temperature Range: 212°F to 608°F
• Oven Racks: 2 adjustable racks
• Construction: Stainless steel front, sides, backriser & shelf
• Supports: Stainless steel burner and grate supports
• Crumb Tray: Removable
• Legs: 6" adjustable legs
• Gas Type: LP gas (pre-configured)
• Gas Connection: 3/4" NPT
