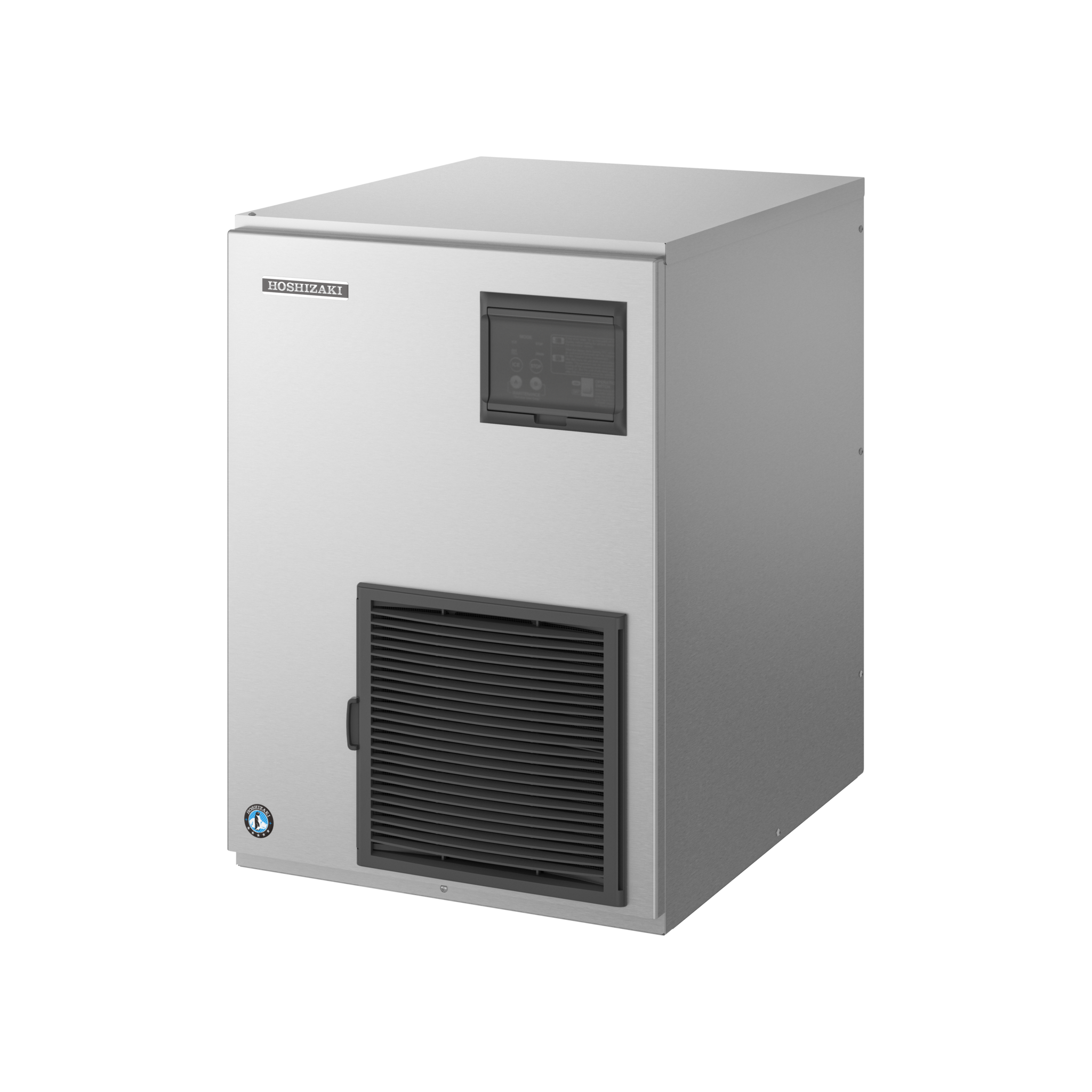

FM-300AKE-HCN Nugget Ice Maker – Modular Commercial Ice Machine

Spec Sheet

The Hoshizaki FM-300AKE-HCN Nugget Ice Maker is a high-capacity modular ice machine engineered to produce up to 250 kg of nugget ice per 24 hours under standard conditions (air temperature 10°C, water temperature 10°C). Designed for professional foodservice, healthcare, hospitality, and retail environments, this model is ideal where chewable, soft nugget ice is preferred for beverages, patient care, and food presentation.

This modular unit is compatible with Hoshizaki storage bins, allowing flexible installation and scalable ice storage. FM-series machines can be converted to produce flake or nugget ice by a qualified engineer, providing adaptability for different operational requirements.

The FM-300AKE-HCN is equipped with Hoshizaki’s CleanCycle6 system, which automatically rinses built-up mineral impurities every 6 hours to maintain consistent ice quality and reduce maintenance needs. Water consumption is equal to ice production, ensuring efficient and predictable water usage.

Hygiene and reliability are further enhanced by an automatic rinse cycle and a closed water circuit, protecting against contamination throughout the ice-making process. The machine uses an electronic controller for stable operation and features an operation time-based parts replacement system to support preventive maintenance planning.

The auger is constructed from double-hardened stainless steel for durability, while carbon graphite bushings enable grease-free operation. This design minimizes wear, lowers maintenance costs, and extends service life. A cleanable air filter supports optimal airflow and simplifies routine cleaning.

Technical Specifications

• Model: FM-300AKE-HCN

• Ice type: Nugget ice (convertible to flake ice by qualified engineer)

• Cooling system: Air cooled

• Ice production capacity:

  • 250 kg / 24h at AT 10°C, WT 10°C

  • 210 kg / 24h at AT 21°C, WT 15°C

  • 175 kg / 24h at AT 32°C, WT 21°C

• Power supply: 1 / 220–240V / 50Hz

• Heat rejection: 1.84 kW (AT 32°C, WT 21°C)

• Water consumption: 0.25 m³ / 24h (AT 10°C, WT 10°C)

Key Features

• Modular nugget ice maker compatible with storage bins

• CleanCycle6 system for automatic mineral rinse every 6 hours

• Water consumption equal to ice production

• Automatic rinse cycle

• Closed water circuit for contamination protection

• Electronic controller

• Time-based parts replacement system for preventive maintenance

• Double-hardened stainless steel auger

• Carbon graphite bushings for grease-free operation

• Cleanable air filter

• Convertible to flake or nugget ice by qualified engineer

Dimensions & Shipping Specifications

• Net dimensions (W × D × H): 560 × 700 × 780 mm

• Net weight: 81 kg

• Packed dimensions (W × D × H): 665 × 820 × 590 mm

• Gross packed weight: 88 kg

• Packed volume: 0.322 m³
