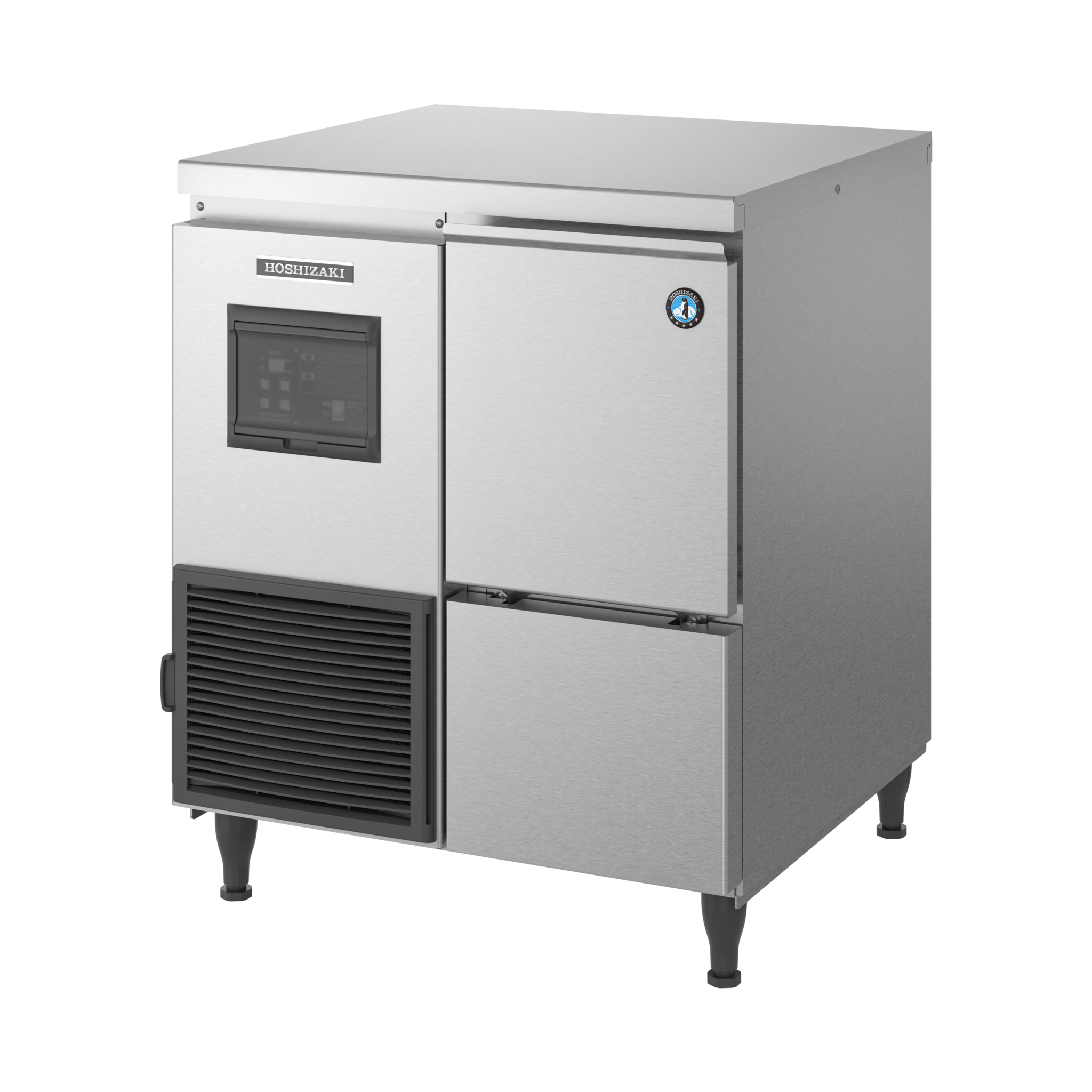

FM-120KE-HC Flake Ice Maker – Self-Contained Commercial Ice Machine

Spec Sheet

The Hoshizaki FM-120KE-HC Flake Ice Maker is a robust, self-contained commercial ice machine engineered to produce up to 125 kg of high-quality flake ice per 24 hours under standard conditions (air temperature 10°C, water temperature 10°C). Designed for professional foodservice and industrial environments, this model is ideal for supermarkets, fish and seafood displays, food processing facilities, catering operations, and healthcare applications.

Flake ice delivers rapid cooling and uniform coverage, helping preserve product freshness while maintaining attractive displays. The FM-120KE-HC incorporates Hoshizaki’s CleanCycle6 system, which automatically rinses mineral impurities every 6 hours, ensuring consistent ice quality and reduced maintenance effort. Water consumption is equal to ice production, providing efficient and predictable water usage.

Hygiene is ensured through an automatic rinse cycle and a closed water circuit, protecting against contamination throughout the ice-making process. The machine features a reliable electronic controller and an operation time-based parts replacement system, supporting preventive maintenance and long-term operational reliability.

The auger is manufactured from double-hardened stainless steel, while carbon graphite bushings enable grease-free operation, minimizing wear and lowering service costs. User-friendly design elements such as a cleanable air filter and a removable door gasket simplify routine cleaning and maintenance.

FM-series machines can be converted to produce flake or nugget ice by a qualified engineer, offering flexibility for changing operational needs.

Technical Specifications

• Model: FM-120KE-HC

• Ice type: Flake ice (convertible to nugget ice by qualified engineer)

• Cooling system: Air cooled

• Ice production capacity:

  • 125 kg / 24h at AT 10°C, WT 10°C

  • 105 kg / 24h at AT 21°C, WT 15°C

  • 82 kg / 24h at AT 32°C, WT 21°C

• Power supply: 1 / 220–240V / 50Hz

• Energy consumption: 0.355 kWh

• Electrical circuit breaker protection: 6 A

• Heat rejection: 0.655 kW (AT 32°C, WT 21°C)

• Water consumption: 0.125 m³ / 24h (AT 10°C, WT 10°C)

Key Features

• Self-contained flake ice maker

• CleanCycle6 automatic mineral rinse every 6 hours

• Water consumption equal to ice production

• Automatic rinse cycle

• Closed water circuit for contamination protection

• Electronic controller

• Time-based parts replacement system for preventive maintenance

• Double-hardened stainless steel auger

• Carbon graphite bushings for grease-free operation

• Cleanable air filter

• Removable door gasket

• Convertible to flake or nugget ice by qualified engineer

Dimensions & Shipping Specifications

• Net dimensions (W × D × H): 640 × 600 × 800 mm

• Net weight: 66 kg

• Legs height: additional 87–122 mm

• Packed dimensions (W × D × H): 746 × 706 × 887 mm

• Gross packed weight: 76 kg

• Packed volume: 0.467 m³
