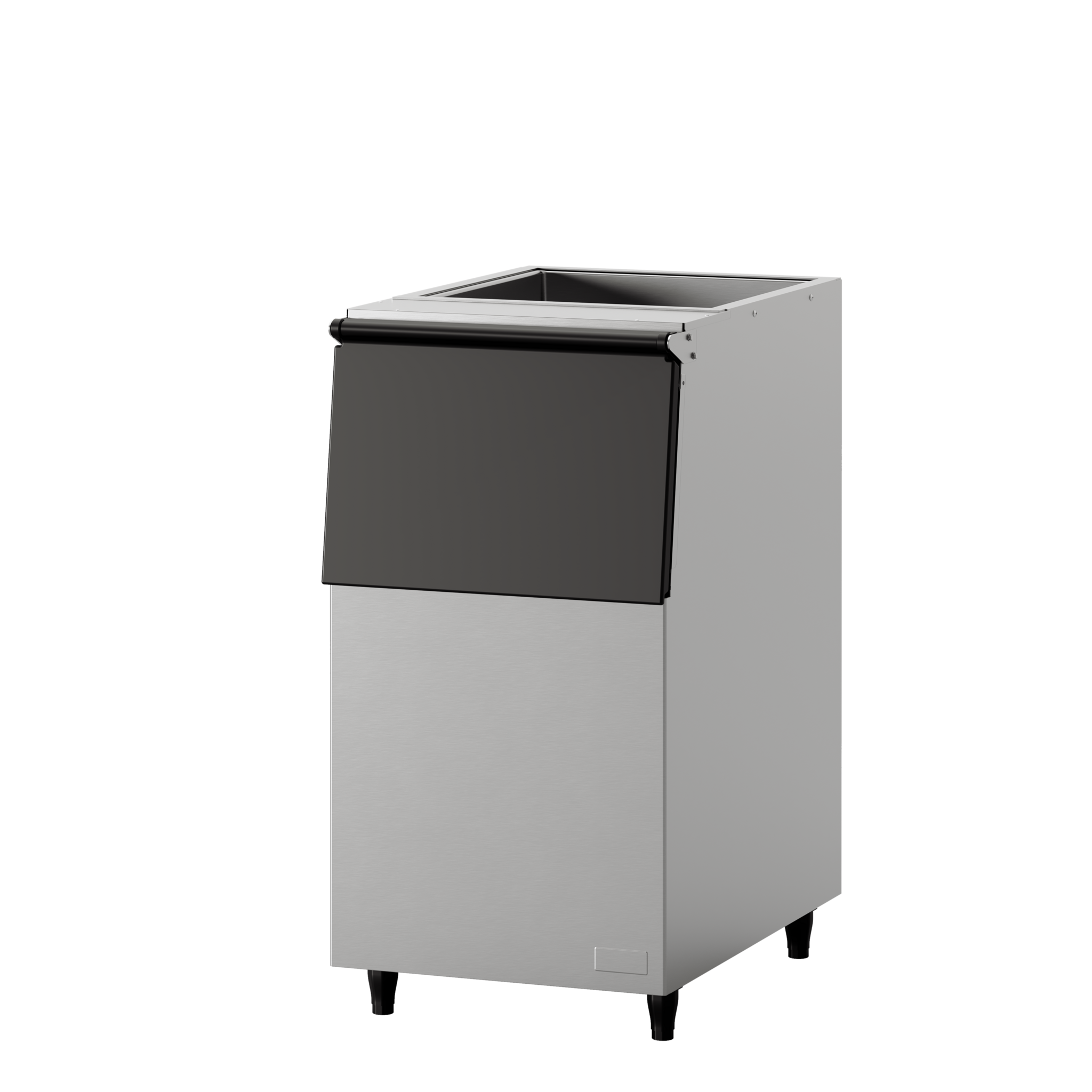

B-140SB Ice Storage Bin – 140 KG Capacity

Spec Sheet

The Hoshizaki B-140SB Ice Storage Bin is a compact, high-efficiency ice storage solution designed to store up to 140 kg of ice. With its slim-line 56 cm width, this bin is ideal for installations where space is limited, while still offering reliable ice storage for professional foodservice environments such as restaurants, cafés, bars, hotels, and catering operations.

The bin is engineered to configure seamlessly with a wide range of Hoshizaki modular cube and flake ice makers. Its sturdy construction features stainless steel front and sides for durability and corrosion resistance. The upward-opening door is fitted with an insulating gasket, ensuring high thermal efficiency and reduced ice melt. The gasket is easily removable, allowing for quick cleaning or replacement.

An ABS plastic insulated door keeps the unit lightweight while maintaining excellent insulation. The door opening angle allows the door to remain in a stable rest position during ice scooping, improving user convenience during busy service periods.

Inside, the bin features a non-corrosive polyethylene inner lining with rounded corners and smooth surfaces, enabling faster ice collection and easy cleaning. Adjustable legs allow flexible installation and proper leveling, while the rear drain connection ensures efficient water drainage. The B-140SB is FCM compliant (Food Contact Material), making it suitable for professional foodservice use.

Compatible Ice Makers (Width 56 cm)

• IM-130A

• IM-240A

• FM-150

• FM-300

• FM-480

• FM-600

• KMD-210

• KMD-270

Required Top Kits

• Top kit required: No

Key Features

• Maximum ice storage capacity: 140 kg

• Slim-line width 56 cm, ideal for tight spaces

• Compatible with modular cube and flake ice makers

• Stainless steel front and sides

• ABS plastic insulated, lightweight door

• Upward-opening door with insulating gasket

• Easy removable gasket for cleaning or replacement

• Door opening angle allows stable rest position during ice scooping

• Non-corrosive polyethylene inner lining

• Rounded inner corners for fast ice collection

• Smooth internal surfaces for easy cleaning

• Adjustable legs 90–135 mm

• Back-panel drain connection

• FCM compliant (Food Contact Material)

Technical Specifications

• Model: B-140SB

• Storage bin capacity: 140 kg

• Net dimensions (W × D × H): 559 × 820 × 1,016 mm

• Legs height adjustment: +90–135 mm

• Net weight: 36 kg
