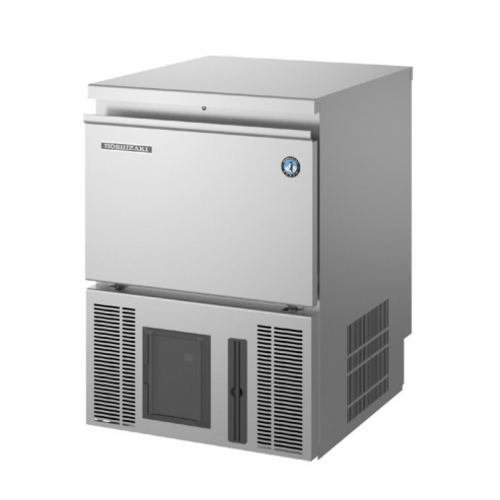

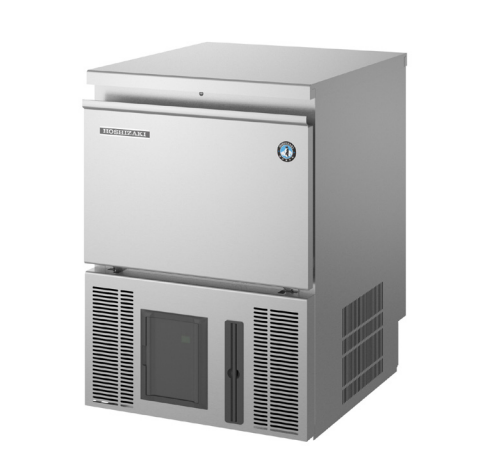

FM-60KE-HC Self-Contained Flake Ice Maker – 65 KG/24H | Compact Commercial Ice Machine

The Hoshizaki FM-60KE-HC is a self-contained flake ice maker designed to deliver reliable and hygienic ice production in compact commercial environments. Producing up to 65 kg of high-quality flake ice per 24 hours at an air temperature of 10°C and water temperature of 10°C, this machine is ideal for restaurants, fish markets, supermarkets, hotels, bakeries, and catering operations.

Hoshizaki flake ice is a light, granular form of ice that provides rapid cooling while maintaining uniform temperatures without causing freezer burn. This makes it particularly suitable for food presentation and storage, especially for fresh fish, meat, and delicate products. The flake ice helps prevent weight loss by keeping products well hydrated, preserving their original texture, quality, and commercial value. The extruding head is equipped with wide channels and multi-blade cutters to ensure consistent flake formation.

The exterior of the FM-60KE-HC is constructed from stainless steel, ensuring durability and ease of cleaning. A closed water circuit provides maximum protection against contamination throughout the ice production process. Each unit is designed for simple operation, cleaning, and maintenance, making it ideal for busy professional kitchens.

This model features Hoshizaki’s unique worktime-based replacement system, which can be monitored through an intuitive control display to support preventive maintenance. Hoshizaki was also the first manufacturer to introduce an automated water circuit rinse cycle, helping to prevent harmful mineral residue build-up and maintain excellent sanitary conditions.

The flaker uses carbon graphite bushings instead of conventional ball bearings, allowing the machine to operate without grease. The absence of moving parts reduces wear and tear, while water-lubricated bearings help prevent calcification and bacterial contamination, ensuring long-term reliability.

With compact external dimensions of 498 × 570 × 697 mm (W × D × H), the FM-60KE-HC is a perfect fit for small spaces where consistent flake ice production is required.

Key Technical Specifications

• Model: FM-60KE-HC

• Cooling system: Air cooled

• Maximum ice production: 65 kg / 24 hours (AT 10°C, WT 10°C)

• Ice storage bin capacity: 18 kg

• Power supply: 1 / 220–240V / 50Hz

• Electrical circuit breaker protection: 6 A

• Electrical consumption (power factor 80%): 270 W

• Water consumption: 0.065 m³ / 24 hours

Shipping Specifications

• Net dimensions (W × D × H): 498 × 570 × 697 mm

• Net weight: 49 kg

• Crated dimensions (W × D × H): 595 × 680 × 873 mm

• Gross weight: 58 kg

• Packed volume: 0.35 m³
