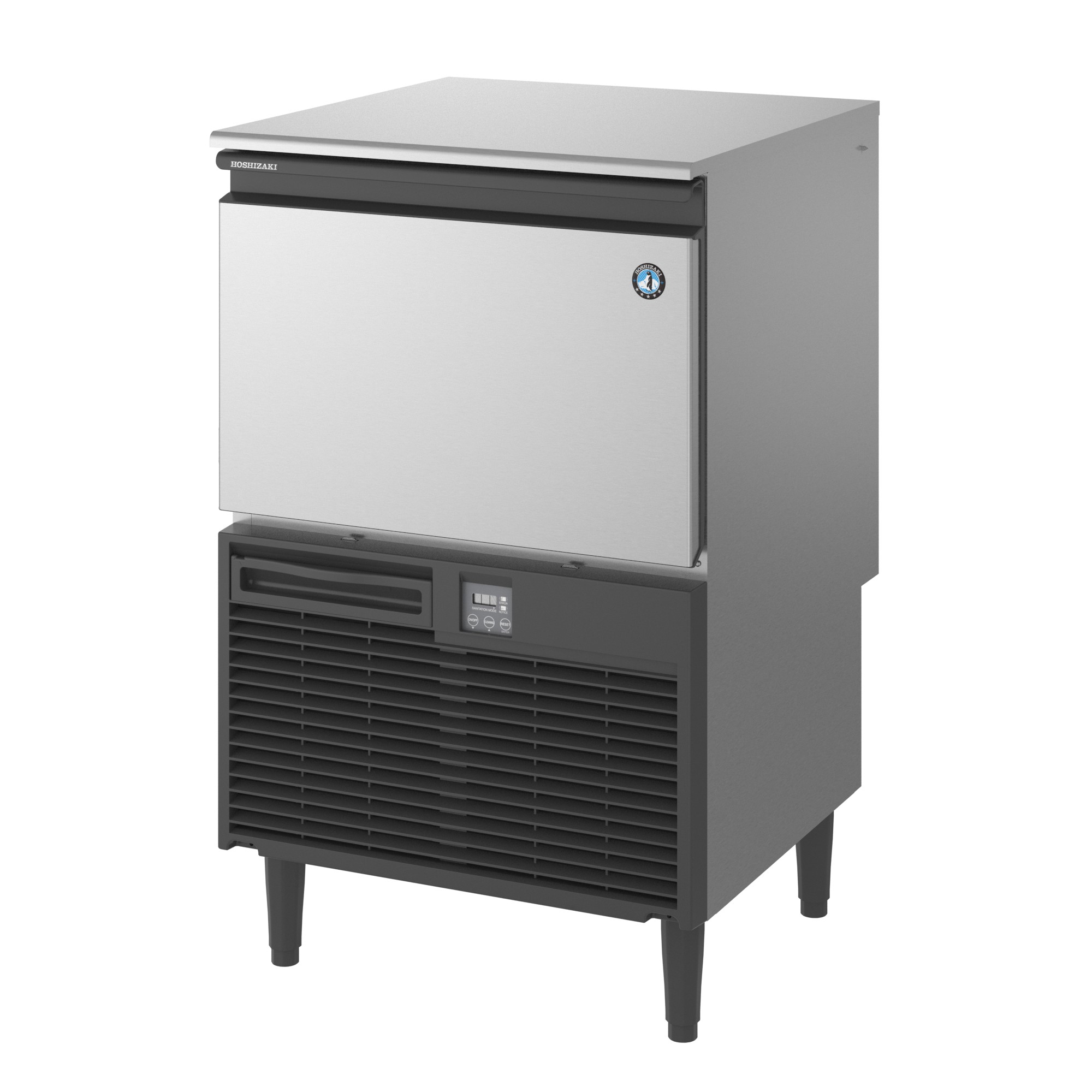

KM-60C-HC Crescent EDGE Ice Maker – Self-Contained | Commercial Ice Machine

Spec Sheet

The Hoshizaki KM-60C-HC Crescent EDGE Ice Maker is a compact, self-contained commercial ice machine engineered to produce up to 60 kg of Crescent EDGE ice per 24 hours under standard conditions (air temperature 10°C, water temperature 10°C). It is ideally suited for cafés, bars, restaurants, hotels, and professional foodservice environments that require premium ice quality with efficient operation in a compact footprint.

Crescent EDGE ice is crystal clear, solid, and slow melting, making it perfect for beverage service, bottle chilling, and professional presentation. The machine incorporates Hoshizaki’s advanced CycleSaver® technology, featuring a double-sided stainless steel evaporator that produces ice on both sides simultaneously. This design reduces harvest cycles, improves energy efficiency, minimizes component wear, and extends the overall lifespan of the machine.

The stainless steel evaporator allows the safe use of mineral deposit removal chemicals without corrosion or flaking, ensuring easy maintenance and long-term durability. Hygiene is enhanced through automatic and manual water cleaning, refreshing the water circuit with fresh water every 20 cycles, and a sanitation mode that automatically cleans and refreshes the water circuit after 4 hours of inactivity.

The ice-making system includes an automatic rinse cycle, with adjustable fresh water usage every 10, 5, 2, or 1 cycle (factory default set at 10). A closed water circuit protects against contamination, while a DC pump with variable water flow and float switch-controlled water level ensure efficient operation with no water waste.

User-friendly features include an electronic controller located on the front panel for easy access, a cleanable air filter, and a removable door gasket for simplified maintenance.

Technical Specifications

• Model: KM-60C-HC

• Ice type: Crescent EDGE ice

• Cooling system: Air cooled

• Ice production capacity:

  • 60 kg / 24h at AT 10°C, WT 10°C

  • 52 kg / 24h at AT 21°C, WT 15°C

  • 37 kg / 24h at AT 32°C, WT 21°C

• Power supply: 1 / 220–240V / 50Hz

• Electrical circuit breaker protection: 5 A

• Heat rejection: 0.72 kW (AT 32°C, WT 21°C)

• Water consumption: 0.37 m³ / 24h (AT 10°C, WT 10°C)

Key Features

• CycleSaver® double-sided stainless steel evaporator

• Crescent EDGE ice with slow melting characteristics

• Automatic and manual water cleaning system

• Sanitation mode after 4 hours of inactivity

• Automatic rinse cycle with adjustable fresh water usage

• Closed water circuit for contamination protection

• DC pump for variable water flow

• Float switch-controlled water level (no water waste)

• Electronic controller on front panel

• Cleanable air filter

• Removable door gasket

Dimensions & Shipping Specifications

• Net dimensions (W × D × H, legs excluded): 605 × 610 × 838 mm

• Legs height: additional 144–167 mm

• Net weight: 45 kg

• Packed dimensions (W × D × H): 710 × 715 × 996 mm

• Gross packed weight: 57 kg

• Packed volume: 0.506 m³
